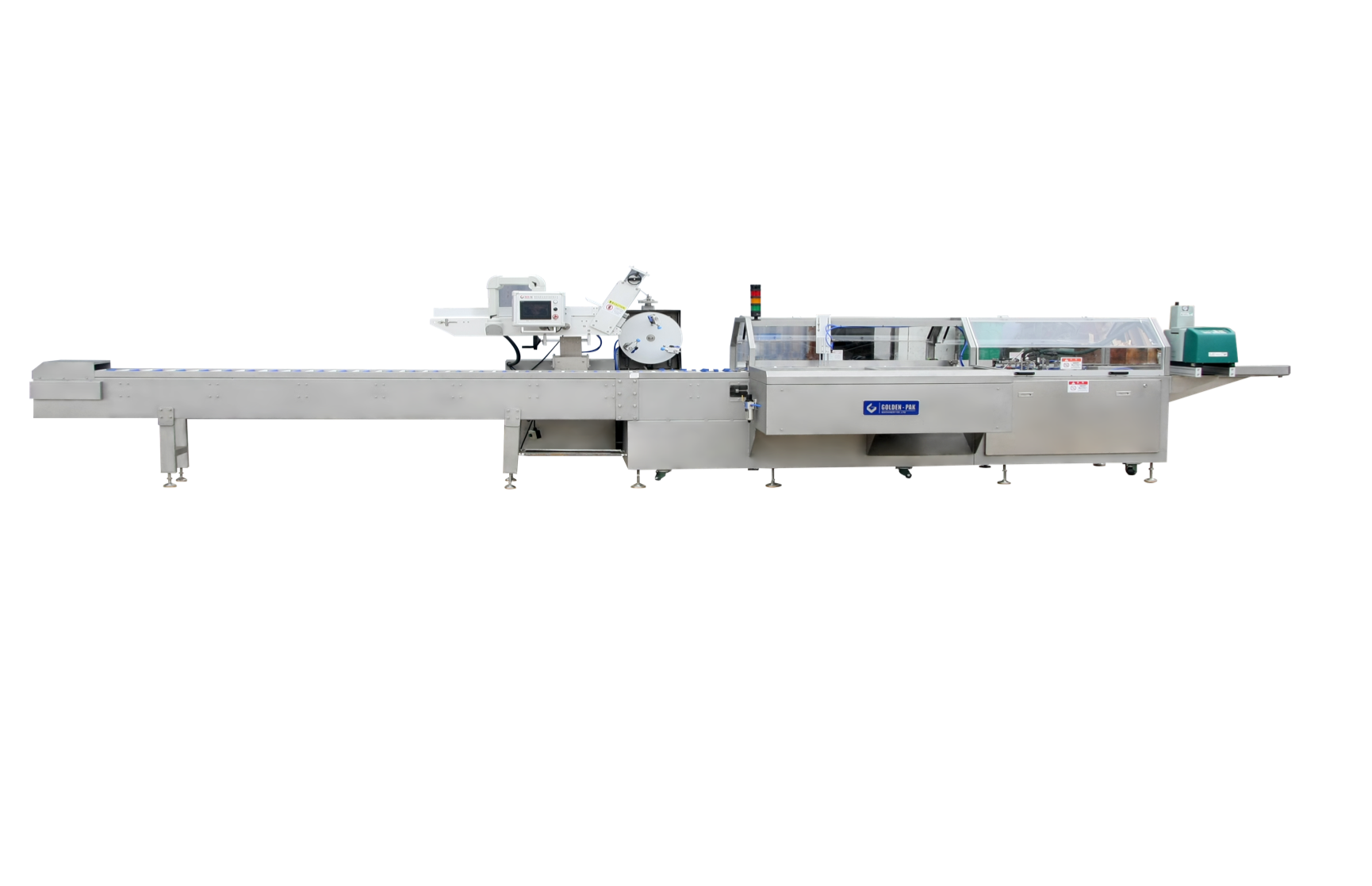

Golden Pak Box Packer provides precise and reliable secondary packaging for the primarily packed products after flow packer or multilane packer. Single or multiple products are loaded into boxes for transport or direct to the retailers. It reduces the packaging cost and provides hygiene treatments in secondary packaging process.
TECHNICAL PARAMETERS
Capacity range for Golden Pak Box Packer
Model
RFH16
RFH26
RFH30
Capacity
60-3600BPH
60-3600BPH
60-3600BPH
Glue volume
4.5KGS/10LB
4.5KGS/10LB
4.5KGS/10LB
Melting Capacity
8.1KGS/18LB PH
8.1KGS/18LB PH
8.1KGS/18LB PH
Box length
70-160MM
80-260MM
160-300MM
Box width
40-150MM
50-200MM
60-250MM
Box height
15-30MM
30-50MM
40-60MM
Power
380V 50Hz 4kW
380V 50Hz 4kW
380V 50Hz 4kW
Weight
400KGS
500KGS
600KGS
Dimension
2100X915X1045MM
3075X1100X1150MM
3075X1200X1150MM
Actual capacities will depend upon the type and size of the product, box quality and the infeed system chosen.
